Photovoltaic Grid Tied PV Battery

When the utility's grid goes down, it is still business as usual for those with Photovoltaic (PV) systems with battery storage. This system is Grid Tied and Net Metered, using a battery based inverter system to process the energy.

Nova Sun Power

Photovoltaic Grid Tied PV Battery

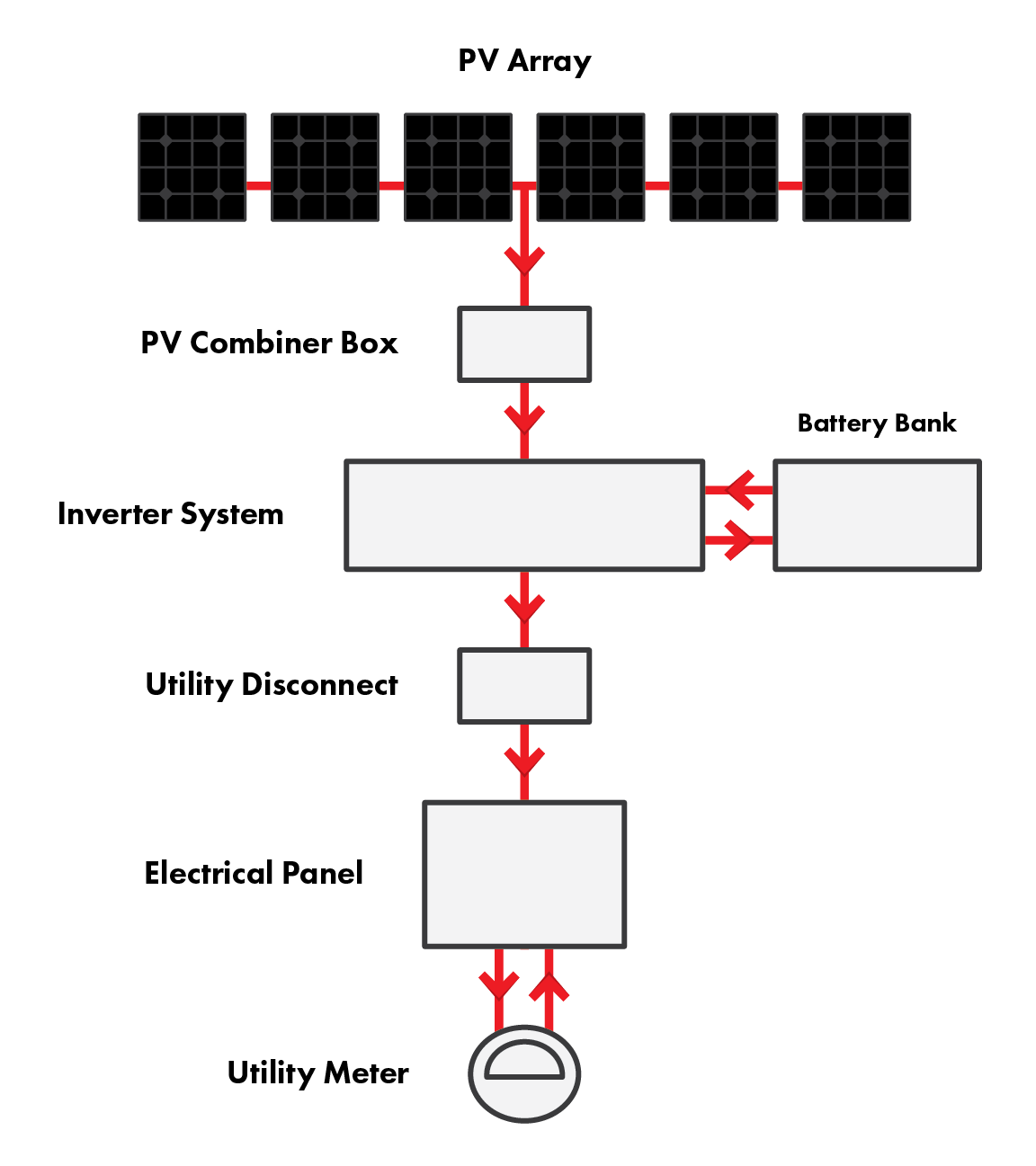

A group or array of PV panels are connected together in groups or strings, usually 3 panels. These strings or groups are all connected together in a Combiner Box which is located near the Array. The DC electricity from the PV panels flows through Combiner Box to a Controller/Regulator in the Inverter system. The Controller regulates the DC power to the batteries. The Inverter allows the batteries to charge and, once the batteries are full, it converts the extra energy from the PV array to AC electricity (which is normal household power). The AC electricity then goes to a safety switch for the utility located outside and near the power meter. From there, it goes to the main electrical panel. Once in the electrical panel, the electricity is used by the loads connected to the panel for lights or appliances. Any extra electricity that is not used in the panel is pushed out or “sold” to the utility grid. New electronic power meters that read power flow coming and going track the energy sold to the utility. Here in Nova Scotia we have a Net Metering program that allows people to sell power to the utility, Nova Scotia Power Inc.

  • 500 watts to 10,000 watts Larger commercial systems available.

  • 3 KWH to 60 KWH

  • DC 60 - 120 Volts, AC - 120, 208, 240, 277 Volts

  • Panels can be roof or round mounted. Panels can be 100 meters from Inverter. Inverter System located in utility area. Utility disconnect is outside near Utility meter. Installation: 3-5 days

  • Clean renewable energy. Power available during grid outage. Low maintenance. Net Metering.

  • Higher Initial cost. Needs unshaded exposure to the sun. Battery maintenance and lifecycle costs.

  • Starting at $9,000 - $40,000 +Tax
